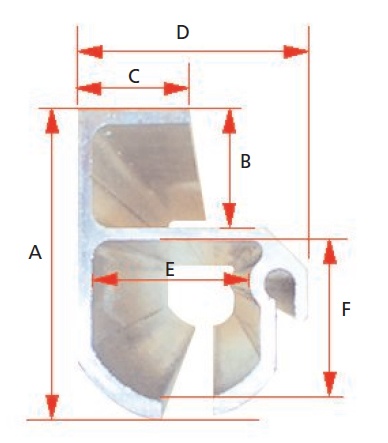

ALUMINUM RAIL TYPE 13
MATERIAL NUMBER
12001291
MM
INCH
A
78.99
3.11
B
30.73
1.21
C
28.7
1.13
D
58.16
2.29
E
40.64
1.6
F
39.37
1.55
Material:
Remarks: LENGTH - 8.1 METERS/26.57 FEET
OLD EURO PART NO.
OLD U.S.A. PART NO.
2703001130100
WEIGHT
16.78kg /37 lbs
DATE
11.17.08
DRAWN
LDJ
