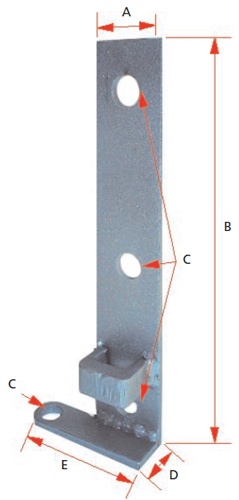

QUICK RELEASE LOWER ATTACHMENT ASSEMBLY (ROADSIDE)
PART NUMBER
12002018

MM
INCH
A
50
1.97
B
252.2
9.93
C
Ø16.7
.66
D
30.48
1.2
E
93.72
3.69
Material: STEEL
Remarks:
OLD EURO PART NO.
OLD U.S.A. PART NO.
WEIGHT
.63 kg / 1.39 lb
DATE
11.17.08
DRAWN
LDJ
