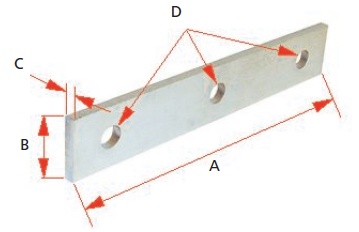

ALUMINUM CLAMPING PLATE FOR PELMET
PART NUMBER
12002165

MM
INCH
A
107.95
4.25
B
19.05
.75
C
3.175
.125
D
Ø6.52
.257
Material: ALUMINUM
Remarks:
OLD EURO PART NO.
OLD U.S.A. PART NO.
WEIGHT
16.4 g / .57 oz
DATE
11.17.08
DRAWN
LDJ
